The EMG range of manual toggle presses comprises two different types of press :
- Manual toggle presses where the maximum power, from 500 to 2000 kg, is obtained only at the end of the stroke depending on the force exerted on the lever.
- High-capacity manual toggle presses, which have significantly higher capacities than their standard counterparts.
These presses are robust, precise, flexible and ergonomic.
They are frequently used for assembly operations, cutting thin products, small bends, various crimping operations and all applications requiring significant travel and/or headroom.
Quick and easy to use, they are also economical. They require very little investment.
Together with the 2 other types of manual press - rack and pinion manual presses and high-capacity rack and pinion manual presses - they make up the extensive range of EMG manual presses.
| Moč500 kg |
| Hod50 mm |
| Razdalja od sredine paha do zadnje stene stiskalnice72 mm |
| Višina orodja42 » 185 mm |
| Teža9 kg |

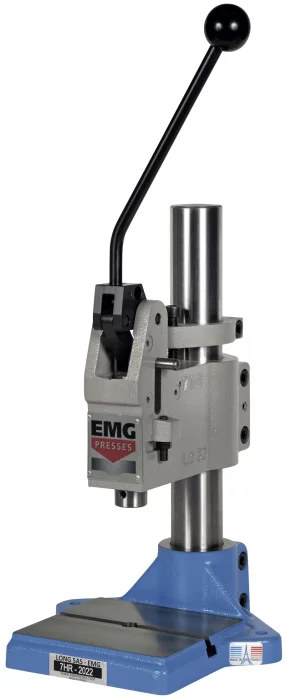

| Moč700 kg |
| Hod40 mm |
| Razdalja od sredine paha do zadnje stene stiskalnice95 mm |
| Višina orodja35 » 260* mm |
| Teža25 kg |
| Moč1 500 kg |
| Hod30 ou 60 mm |
| Razdalja od sredine paha do zadnje stene stiskalnice102 mm |
| Višina orodja60 » 250 mm |
| Teža32 kg |
| Moč2 000 kg |
| Hod60 mm |
| Razdalja od sredine paha do zadnje stene stiskalnice130 mm |
| Višina orodja120 » 280 mm |
| Teža65 kg |

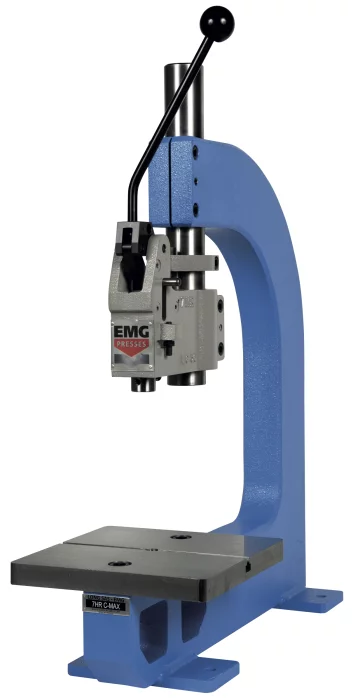

| Moč700 kg |
| Hod40 mm |
| Razdalja od sredine paha do zadnje stene stiskalnice350 mm |
| Višina orodja80 » 270 mm |
| Teža95 kg |
| Moč1 500 kg |
| Hod30 ou 60 mm |
| Razdalja od sredine paha do zadnje stene stiskalnice220 mm |
| Višina orodja220 » 280 mm |
| Teža55 kg |

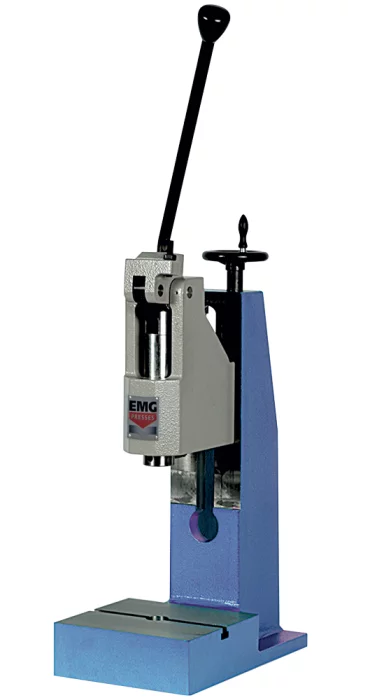

| Moč2 000 kg |
| Hod60 mm |
| Razdalja od sredine paha do zadnje stene stiskalnice250 mm |
| Višina orodja230 » 290 mm |
| Teža70 kg |
Aplikacije

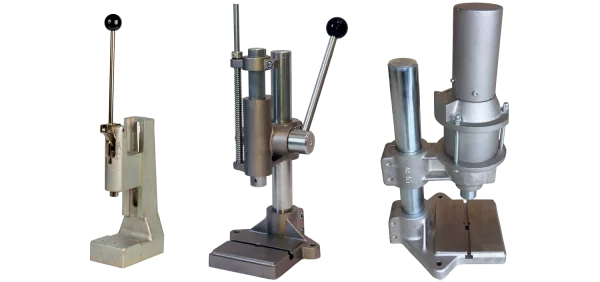

GLAVNE MOŽNOSTI

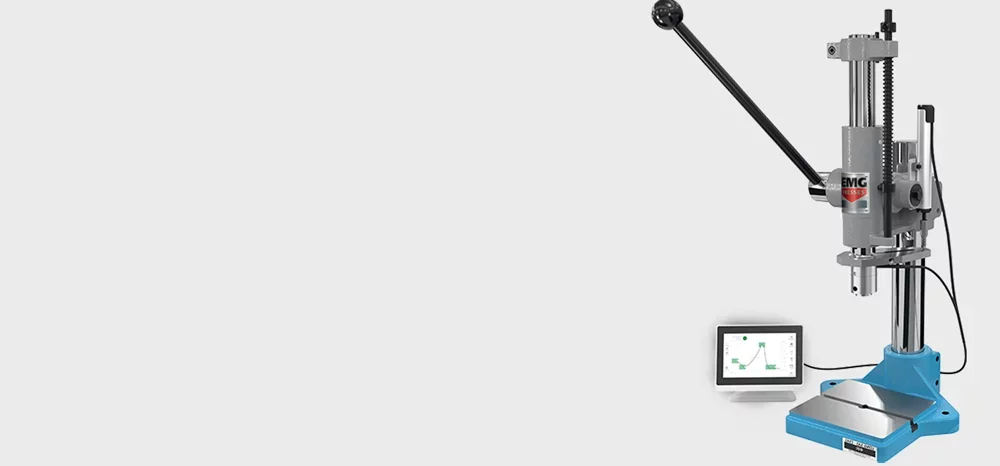

Upravljanje prizadevanj
ZA ROČNE IN PNEVMATSKE STISKALNICE
EMG ponuja vse vrste upravljanja sile in/ali premikanja s pomočjo rešitev senzorjev sile in premikanja, prilagojenih vsaki potrebi, za 100-odstotni nadzor delov.

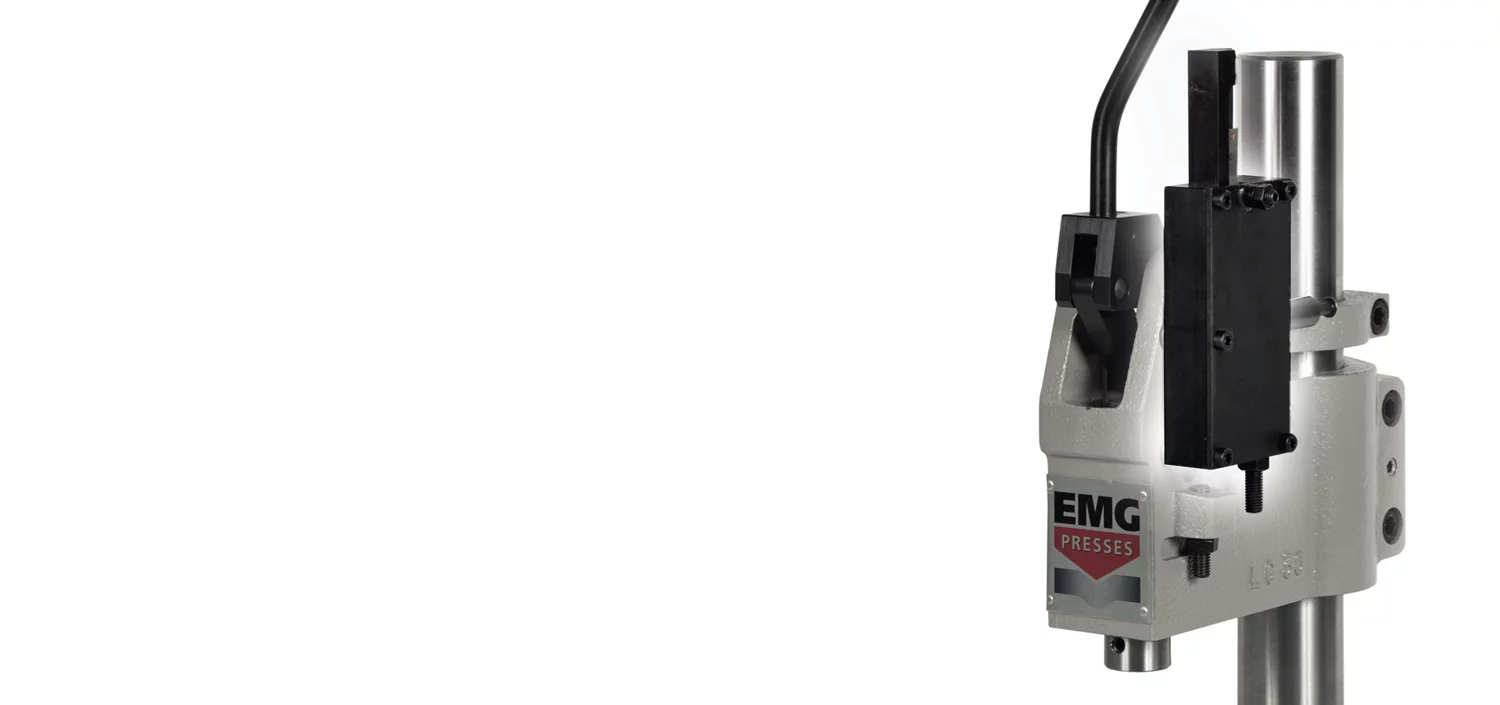

Sistem proti povratku
ZA ROČNE STISKALNICE
Sistem proti povratku: preprečuje, da bi se vzvod dvignil, če ni bil dosežen konec hoda.
To zagotavlja popolno in ponovljivo izvedbo operacije.
Features :
- Ground and rotationally locked slide
- Automatic spring return of the slide
- Quick and reliable free height adjustment
- Precise adjustment of bottom dead centre by a mechanical stop to ensure cycle repeatability
- FGL 250 cast iron base and head for strength and rigidity
- Maintenance-free and grease-free
- Predisposed for mounting on a workbench
- Paint: 5015 Sky Blue base - RAL 7036 Platinum Grey head
Manufactured in France and ISO-9001 certified since 2000, the EMG range of manual presses offers a wide choice of options and adaptations to meet the most diverse needs and requirements of each application, in industry as well as in the building trade.
The most varied operations are carried out smoothly thanks to the power reserve of each model and the rigorous overall precision.
- Adjustable headroom and stroke
- Quick and easy to set up
- Low investment

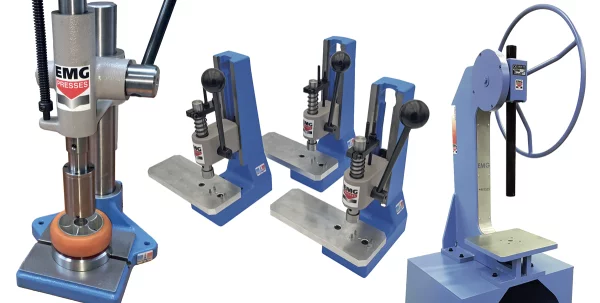

LONG is also committed to designing and equipping the special machines required by the specific activities of each trade. To meet the needs of specific applications required by certain trades and fields of activity, EMG offers custom-made special equipment, perfectly adapted to specifications and production constraints.
Thanks to its design office and a fleet of more than 40 machining centres, EMG can design and manufacture any modification or special presses on request, as well as small press fittings and tooling, such as :
- Press with offset toggle to increase the depth of the gooseneck and the work table.
- Press with a tool for crimping 3 rivets to hold a steel part in a stainless steel support.
- Pneumatic press with 2-position cutting tool incorporating a top deflector for part ejection.
- Pneumatic press with electric control panel
UPORABE
Manual toggle presses are mainly used for applications requiring a high level of effort at a low height, such as cutting, crimping and marking. They are suitable for small production runs of small to medium-sized parts.
On manual presses with toggle levers, movement of the lever is very fast and ergonomic, as it is done through a maximum of 90° to cover the entire stroke of the press. The nominal pressure developed by this type of press is obtained at the end of the stroke.
The force management system enables the quality of the various applications carried out with the press to be controlled quickly and accurately.
An EMG manual press is delivered with a service manual, CE conformity certificate and drawings. It comes with a full one-year parts, labour and travel warranty.
